Rack Mount UPS
|
|

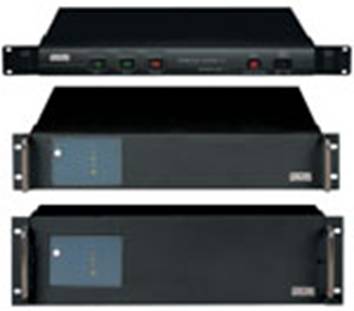

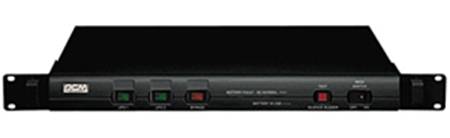

Rack mount 1000VA $280.00 Rack mount 1500VA $380.00 ISO 9000 Company Rack mount 2200VA $480.00 We have all kinds, sizes and shapes
of UPS with AVR technology. Identical
to Minuteman and APC+ not as expensive better tolerance. |
|
AC INPUT |
|
|
|
|
|
AC
Input Capacity on Battery |
1000VA |
|
|
|
|
AC
Input Voltage |
(+/-)
25% at line input |
|
|
|
|
AC
Input Frequency |
50 or 60 Hz+/-10% (auto sensing) |
|
|
|
|
AC OUTPUT |
|
|
|
|
|
AC
Output Voltage |
Simulated
sine ware at 100V or 110V/115V/120V or 220V/230V/240V +/-5% |
|
|
|
|
AC
Output Frequency |
50 or 60 Hz +/- 0.5% |
|
|
|
|
AC
Output Voltage Regulation |
AVR
automatically increase output voltage 15% above input voltage if -9% to -25%
of nominal. AVR decrease output voltage 13% below input voltage if +9% to
+25% of nominal |
|
|
|
|
AC
Output Transfer |
2/4 milliseconds, including detection time |
|
|
|
|
PHYSICAL |
|
|
|
|
|
Physical
Weight kgs RM |
10.5 |
|
|
|
|
Physical
Weight lbs RM |
(23.1lb) |
|
|
|
|
Physical
Shipping Weight kgs |
11.7 |
|
|
|
|
Physical
Shipping Weight lbs |
(25.7lb) |
|
|
|
|
Physical
Dimension mm Tower |
N/A |
|
|
|
|
Physical
Dimension inch Tower |
N/A |
|
|
|
|
Physical
Dimension mm RM |
483x362x44 (1U) |
|
|
|
|
Physical
Dimension inch RM |
N/A |
|
|
|
|
INTERFACE |
|
|
|
|
|
Interface
RS-232 |
RS-232C
Bi-directional communication port |
|
|
|
|
MODEL |
|
KIN-1500AP RM |
KIN-2200AP RM |
|
|
INPUT |
Capacity |
1500VA |
2200VA |
|
|
Capacity |
500VA (for 20~240V
models only) |
N/A |
N/A |
|
|
Voltage |
+/-25% at line input |
|||
|
Frequency |
50 or 60 Hz +/-10%
(auto sensing) |
|||
|
OUTPUT |
Voltage (on battery) |
Simulated sine wave at |
||
|
Frequency (on battery) |
50 or 60 Hz +/-0.5% |
|||
|
Voltage Regulation (AVR) |
AVR automatically increase output voltage
15% |
|||
|
Transfer Time |
2/4 milliseconds,
including detection time |
|||
|
PROTECTION |
Spike Protection |
320 Joules |
||
|
EMI/RFI Filter |
10dB at 0.15MHz, 50dB
at 30MHz |
|||
|
Unit Input |
For overload & Short circuit protection |
|||
|
Overload Protection |
UPS automatic power off if overload exceeds
110% of |
|||
|
10 Base-T Cable Port |
Network (UTP, RJ-45) compatible jacks |
|||
|
Short Circuit |
UPS output cut off immediately or input
circuit breaker protection |
|||
|
BATTERY |
Type |
Sealed, Maintenance-free lead acid |
||
|
Typical Recharge Time |
8 hours (to 90% of
full capacity) |
|||
|
Back-up Time |
70 - 80 mins |
85 - 95 mins |
|
|
|
Protection |
Automatic self-test, Discharge protection,
Replace battery indicator |
|||
|
PHYSICAL |
Net Weight Kg(lbs) |
16.0 (35.2 lb) |
28.0 (61.6 lb) |
|
|
18.5 (40.7 lb) |
30.7 (67.5 lb) |
|
||
|
Dimension WxDxH (mm) |
483 x 357 x 84 (2U) |
483 x 351 x 130 (3U) |
||
|
INTERFACE |
RS232 |
RS-232C Bi-directional communication port |
||
|
ALARM |
Battery Back-up |
Slow beeping sound (about 0.47 Hz) |
||
|
Battery Low |
Rapid beeping sound (about 1.824 Hz) |
|||
|
Overload |
Continuously beeping sound |
|||
|
ENVIRONMENT |
Ambient Operation |
3,500 meters max,
elevation. 0-95% humidity non-condensing, 0-40 ¢J |
||
|
Audible Noise |
<40dBA (1 meter from surface) |
|||
|
Storage Condition |
15,000 meter max |
|||
|
GENERAL
INFORMATION |
|
|
|
|
|
Model
Type |
KING
RM |
|
|
|
|
Model
Name |
KIN-1000APRM |
|
|
|
|
PROTECTION |
|
|
|
|
|
Protection
Spike |
320 Joules, 2ms |
|
|
|
|
Protection
EMI/RFI |
10dB at 0.15 MHz, 50 dB at 30 MHz |
|
|
|
|
Protection
Overload |
UPS
automatic shutdown if overload exceeds 110% nominal at 60 sec and 130% at 3
sec |
|
|
|
|
Protection
Unit |
Fuse
for overload & short circuit protection |
|
|
|
|
Protection
10 BaseT |
Network
(UTP, RJ-45) compatible jacks |
|
|
|
|
Protection
Short Protection |
UPS
output cut off immediately or input fuse protection |
|
|
|
|
BATTERY |
|
|
|
|
|
Battery
Type |
Sealed,
Maintenance-free lead acid |
|
|
|
|
Battery
Typical |
8 hours (to 90% of full capacity) |
|
|
|
|
Battery
Protection |
Automatic
self-test & discharge protection, replace battery indicator |
|
|
|
|
Battery
Run Time |
50 - 60 minutes |
|
|
|
|
INDICATOR |
|
|
|
|
|
LED |
LED |
|
|
|
|
ALARM |
|
|
|
|
|
Alarm
Battery Backup |
Slow
beeping sound (about 0.47 Hz) |
|
|
|
|
Alarm
Battery Low |
Rapid
beeping sound (about 1.82Hz) |
|
|
|
|
Alarm
Overload |
Continue
beeping sound |
|
|
|
|
ENVIRONMENT |
|
|
|
|
|
Environment
Ambient |
3,500 meters max. elevation, 0-95% humidity non-condensing,
0-40 deg c |
|
|
|
|
Environment
Audible |
<40dBA
(1 meter from surface) |
|
|
|
|
Environment
Storage Condition |
15,000 meters max. |
|
|
|
|
